Home Computing...

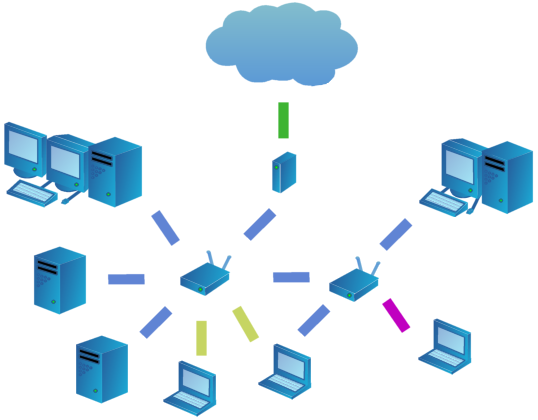

Network Configuration
Green - Coax cable
Purple - Cat5 Ethernet cable
Yellow-ish - 802.11b wireless
Violet - 802.11g wireless
The following computers illustrated above are not profiled below: an hp Compaq d220 MT server, an Acer Aspire 1720 notebook, an IBM Thinpad T40 and an IBM Thinkpad A20m are not profiled below as I either never use them or they are for work. The A20m flipflops between a wireless and wired connection, hence the two connection above.
Primary Workstation
Manufacturer: Dell,
Inc.
Model: Dimension XPS T750r
Processor: Intel Pentium III 750 MHz
HDD1: IBM Deskstar 27 GB 7200 RPM
HDD2: Maxtor 20 GB 7200 RPM
Ram: 512 MB SDRAM
Monitor1: 19" Samsung SyncMaster 191T
LCD at 1280x1024x32bit
Monitor2: 19" Dell M990 CRT at 1024x768x16bit
Video1: AGP NVIDIA GeForce 256 Plus
Video2: PCI S3 ViRGE
Drive1: Samsung DVD-ROM SD-616 (with CineMaster
decoder card)
Drive2: Samsung CD-R/RW SW-252B
Floppy: 1.44 MB
Keyboard: Microsoft Internet Keyboard
Mouse: Logitech MouseMan Wheel PS/2
Modem: Dell Data Fax Modem
Network: Linksys LNE100Tx Version 2.0 Fast
Ethernet PCI Card (Cat5)
Sound: Creative SoundBlaster Live! Value
Peripherals: Canon S450 (Printer), UMAX Astra
1220P (Scanner), PNY USB CompactFlash Reader/Writer, Altec Lansing ADA 885 with
Dolby and THX (Speakers)
Gaming: Microsoft SideWinder game pads (2x),
Microsoft SideWinder 3D Pro joystick
OS: Microsoft Windows XP Professional and
Red Hat Linux 8.0 dual boot
Secondary Workstation
Manufacturer: Dell, Inc.
Model: Dimension 8100
Processor: Intel Pentium 4 1.2 GHz
HDD: IBM Deskstar 20 GB 7200 RPM
Ram: 384 MB RDRAM
Monitor: 17" Dell P780 Trinitron CRT
at 1024x768x32bit
Video: AGP NVIDIA GeForce 2 MX/MX 400
Drive1: Samsung DVD-ROM SD-616 (software
decoding)
Drive2: LG CD-RW CED-8080B
Floppy: 1.44 MB
Keyboard: Dell QuietKey
Mouse: Logitech MouseMan Wheel USB
Network: 3Com Fast Etherlink Bus-Master PCI
Card (Cat5)
Sound: Creative SoundBlaster Live! Value
OS: Microsoft Windows XP Home
Server
Manufacturer: Clone
Processor: Intel Pentium 166 MHz
HDD1: Quantum Fireball 1.2 GB
HDD2: Western Digital Caviar 3.8 GB
Ram: 32 MB
Monitor: 19" Dell M990 CRT at 1024x768x16bit
(shared with Primary Wrkst w/ KVM)
Video: PCI S3 ViRGE
Drive: Creative 24x CD-ROM Vibra 125
Floppy: 1.44 MB
Keyboard: Microsoft Internet Keyboard (shared
with Primary Wrkst w/ KVM)
Mouse: Logitech MouseMan Wheel PS/2 (shared
with Primary Wrkst w/ KVM)
Network: Linksys Ether16 PCI Card (Cat5)
OS: Microsoft Windows NT 4.0 Server
